Overview

Last week (Sprint 3 Week 1) the Telegram notification feature was in-flight on a dedicated Superset worktree under paired red/green commits. This week it shipped. Three feature MRs landed back-to-back: MR !221 (Phase 1 & 2 of SIRA-161, all 7 subtasks merged), MR !238 (delivery logs, SIRA-305), MR !243 (daily digest “Prioritas Hari Ini”, SIRA-299). The interesting Part C angle is what I had to learn to make the integration land. Four new things this week, all outside standard Fasilkom coursework, all applied directly to SIRA.

1. The Telegram Bot API Surface (Beyond Just sendMessage)

Most public examples of Telegram bots stop at bot.sendMessage(chat_id, text). A real notification system needs more: structured formatting, interactive buttons, message threading inside forum groups, and graceful handling when a feature is unavailable on a particular chat. I had to learn four distinct API behaviors:

parse_mode="MarkdownV2" is Telegram’s strict-flavor Markdown. It requires escaping every literal _, *, [, ], (, ), ~, `, >, #, +, -, =, |, {, }, ., ! in user-supplied text or the API rejects the message with 400 Bad Request: can't parse entities. I built an escape_markdown_v2() helper in telegram_templates.py because Indonesian client names commonly contain dots and parentheses (“PT. Maju (Persero)” being a typical pattern in the dataset).

reply_markup with InlineKeyboardMarkup lets you attach buttons under a message. We use this for deep-link routes back into SIRA: clicking “Lihat Faktur” opens https://sira.nashtagroup.co.id/admin/invoices/<uuid> in the browser. Each button is a (text, url) tuple, organized into rows. Learning the JSON shape that the Bot API expects took some reading because the Python wrapper I started with had a slightly different schema from the raw HTTP API.

message_thread_id routes a message to a specific topic inside a Telegram forum group. SIRA’s team channel is a forum with topics like “Overdue”, “Payments”, “Reminders”, “Daily Digest”, “High Risk”, “System/Test”. Sending without message_thread_id would dump everything into the General topic. The catch: not every group has forums enabled. If you send message_thread_id to a non-forum group, the API returns 400 Bad Request: message thread not found. I learned to fall back automatically: if the response matches that error, retry the send without message_thread_id. The structured TelegramSendResult dataclass tracks used_thread_fallback: bool so the dispatcher can record which channels needed the fallback.

The three screenshots below show this working in our actual team Telegram group. Three different topics, three different message templates, all with the inline keyboard buttons rendering correctly:

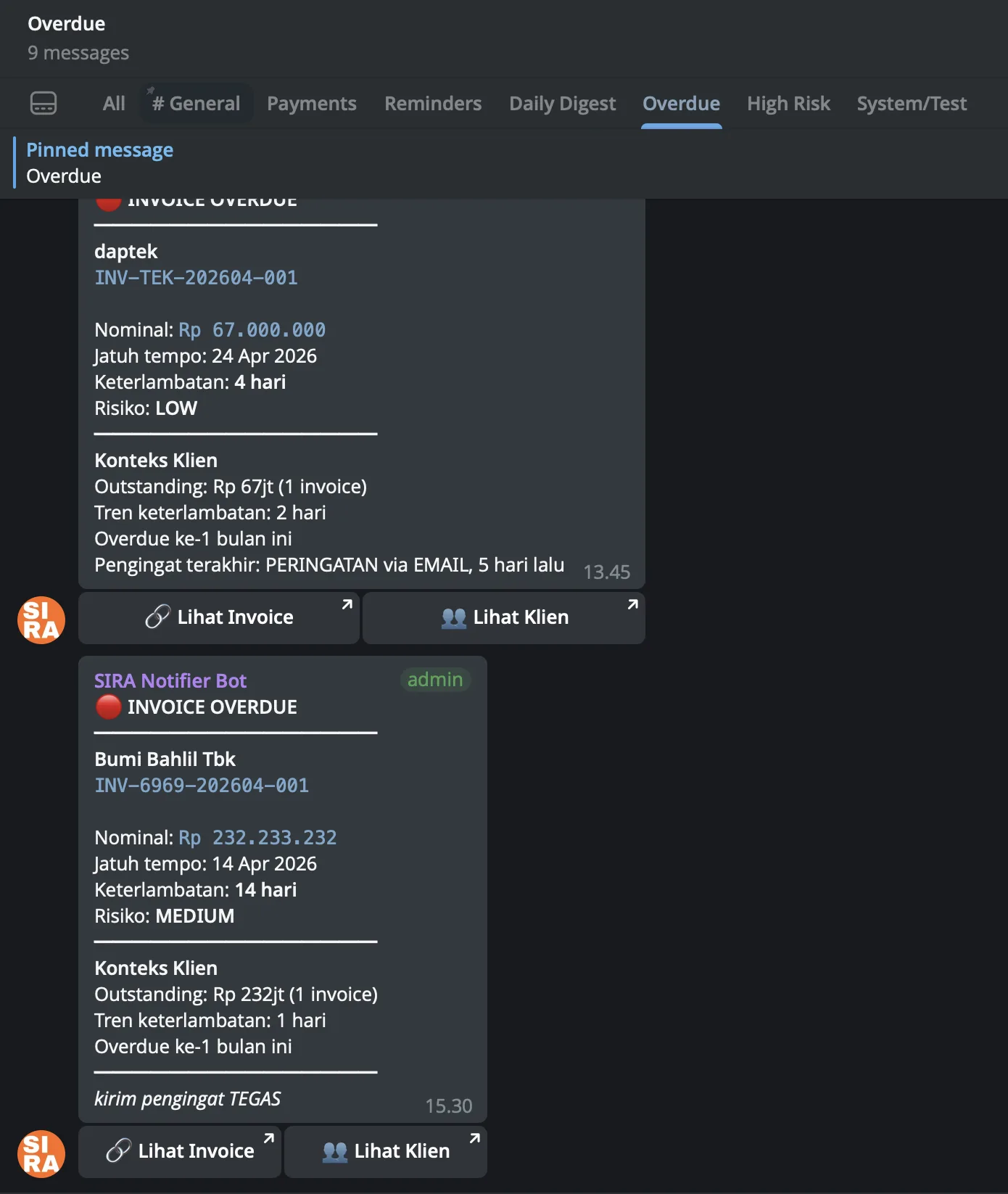

Overdue topic showing two INVOICE OVERDUE notifications with structured fields (Nominal, Jatuh tempo, Keterlambatan, Risiko), client context (Outstanding, Tren keterlambatan), and Lihat Invoice / Lihat Klien deep-link buttons. The risk badges show LOW for the first message and MEDIUM for the second, demonstrating that the risk classifier output reaches Telegram correctly

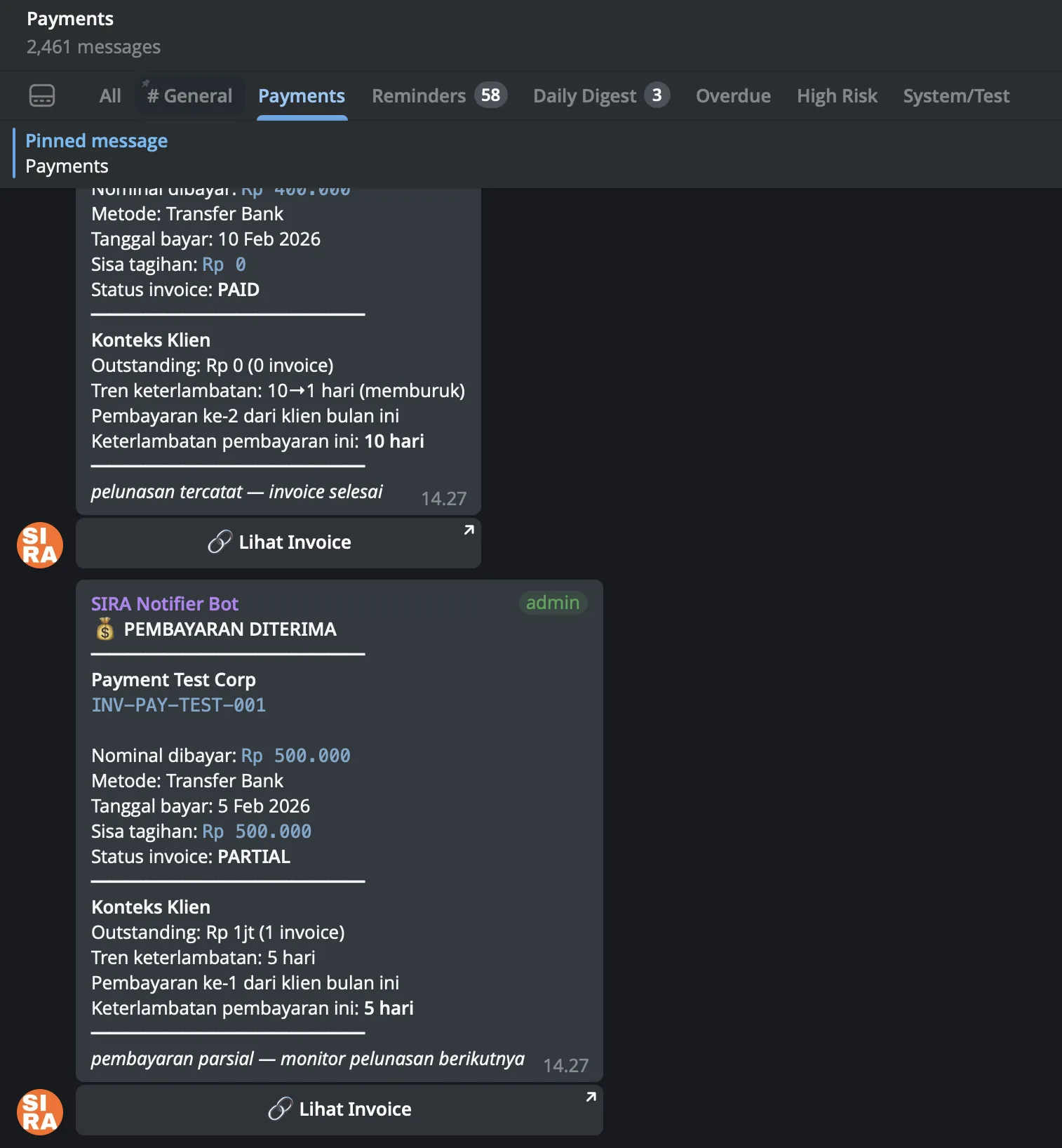

Payments topic showing PEMBAYARAN DITERIMA notifications with payment-specific fields (Metode, Tanggal bayar, Sisa tagihan, Status invoice). The second message demonstrates a PARTIAL payment with the explicit pelunasan parsial caption and the monitor-pelunasan-berikutnya hint

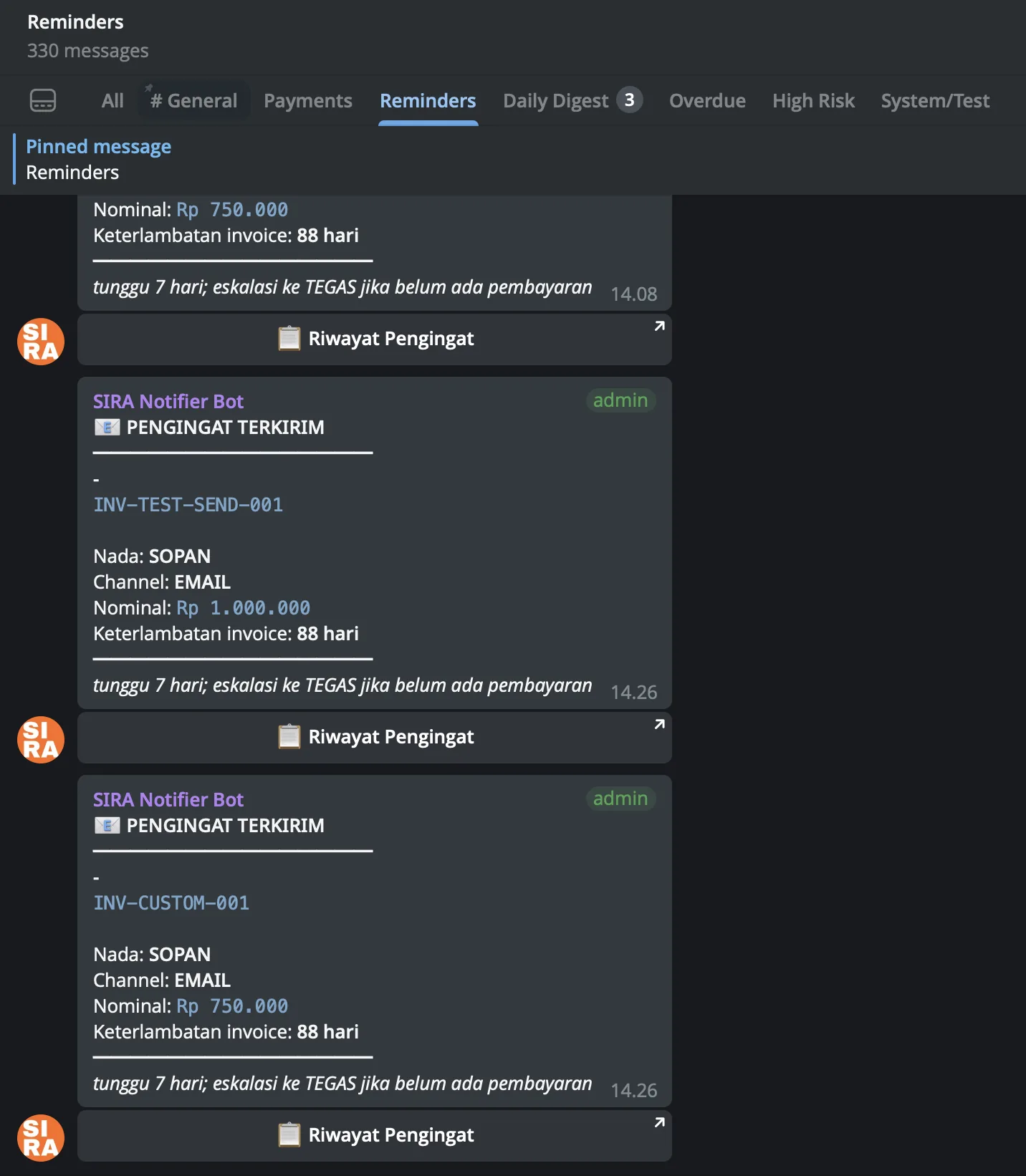

Reminders topic showing PENGINGAT TERKIRIM notifications with the reminder-specific fields (Nada SOPAN, Channel EMAIL) and the Riwayat Pengingat deep-link button. The tone classification (SOPAN/TEGAS/PERINGATAN) flows from the risk score directly into the reminder template here

Each topic in the screenshots is a distinct message_thread_id in the Bot API call. Each message template (render_overdue_detected, render_payment_recorded, render_reminder_sent) is a separate function in telegram_templates.py. The dispatcher routes each event to the right topic + the right template, and the inline buttons attach the right deep-link URL based on the entity type (invoice ID, client ID, payment ID).

Connection-test and chat-id discovery flow. A new admin onboarding the bot needs to know their chat ID. The Telegram-recommended approach is to message a bot like @RawDataBot and read your chat ID from its reply. I built that into the SIRA settings UI as a visual tutorial (with screenshots), so admins do not need to leave the app to set up notifications. The connection test at POST /settings/telegram/test validates the configured bot_token + chat_id by sending a “✅ Telegram terhubung” message; if it fails, the error message tells the admin which env var is wrong.

None of this is in any Fasilkom course. The official Telegram Bot API docs are 200+ pages. Learning the right subset for a real notification feature took most of two days.

2. Tenacity for Retry-with-Backoff

The Telegram Bot API rate-limits at 30 messages/second per bot, returning 429 Too Many Requests with a Retry-After header. A naive requests.post(...) ignores that. We needed a retry library that:

  • Retries on specific exceptions (HTTP 429, network errors), not on user errors (HTTP 400).
  • Respects Retry-After when present.
  • Caps at a small number of attempts so the worker does not block forever.
  • Exposes the retry attempts in logs for observability.

I learned Tenacity, a Python retry library. The integration looks like this in telegram_service.py:

from tenacity import retry, retry_if_exception_type, stop_after_attempt, wait_exponential

@retry(
    retry=retry_if_exception_type((httpx.HTTPStatusError, httpx.NetworkError)),
    stop=stop_after_attempt(3),
    wait=wait_exponential(multiplier=1, min=1, max=4),
    reraise=True,
)
async def _send_with_retry(client, payload):
    response = await client.post(TELEGRAM_API_URL, json=payload)
    response.raise_for_status()
    return response

Three attempts maximum, exponential backoff at 1s, 2s, 4s. The reraise=True is important: after the final attempt fails, Tenacity re-raises the original exception so my structured failure classifier in _classify_failure(...) can categorize it as network_error or rate_limit. Without reraise, Tenacity wraps the exception in RetryError which loses the type information.

The discipline I picked up from Tenacity: don’t retry on 4xx that aren’t 429. A 400 is “you sent a malformed request” and retrying does not help; it just delays the inevitable error. The retry_if_exception_type filter prevents that. This is a small thing but easy to get wrong if you reach for a generic try/except: retry() pattern.

3. Celery Beat for Scheduled Tasks

SIRA already used Celery Workers for async jobs (risk scoring, reminder dispatch). The daily digest is different: it must fire at exactly 08:00 WIB every day, even if no business event triggers it. That is what Celery Beat is for.

What I had to learn:

Worker vs Beat is two processes, not one. The Celery Worker consumes tasks from Redis and runs them. The Beat scheduler is a separate process that publishes tasks to Redis on a schedule. Locally I run both via make dev (process-compose), but in production they are two separate Docker services (api-worker and api-beat). Forgetting Beat means scheduled tasks never fire; you only realize the next morning when the digest doesn’t arrive.

Schedule configuration in celery_app.py:

celery_app.conf.beat_schedule = {
    "send-daily-digest-08-00-wib": {
        "task": "app.workers.daily_digest.send_daily_digest",
        "schedule": crontab(hour=1, minute=0),  # 08:00 WIB = 01:00 UTC
        "options": {"expires": 60 * 30},  # Drop if not started within 30 min
    },
}

The timezone gotcha is real: Beat runs in UTC by default. WIB is UTC+7, so 08:00 WIB is 01:00 UTC. I encoded that as crontab(hour=1, minute=0) and added a comment so the next contributor does not double-convert.

The expires option is a safety. If the worker is down at 08:00 (deploy in progress, etc.), Beat still publishes the task. When the worker comes back up at 09:00, it would normally execute the stale task and send “Daily Digest for yesterday” at the wrong time. Setting expires=30 minutes makes the task self-discard if it hasn’t started by 08:30. A small thing but it prevents user-visible weirdness on deploy days.

4. Structured Failure Classification (Beyond try/except)

The Telegram service can fail in roughly six ways: rate limit, chat not found, thread not found, bad request (malformed payload), network error, unknown. The naive approach is except Exception: log_error(). The disciplined approach is a typed result that names each failure case so downstream consumers can route on it:

@dataclass(frozen=True, slots=True)
class TelegramSendResult:
    success: bool
    message_id: int | None
    failure_category: Literal[
        "rate_limit", "chat_not_found", "thread_not_found",
        "bad_request", "network_error", "unknown"
    ] | None
    used_thread_fallback: bool
    raw_status_code: int | None

The b2 (programming) blog this week walks through the design of this dataclass. The Part C angle here is the learning: I did not know about frozen=True, slots=True as a value-object pattern in Python. The frozen=True makes the object immutable (so passing it to persist_delivery_log(...) cannot accidentally mutate it). The slots=True removes the __dict__ overhead so each result is cheaper to construct in a hot path. Together they give you “Python’s version of a Rust struct”.

Combined with Literal[...] for the failure category (instead of an enum), the result is type-safe at compile time without serialization friction at the storage boundary. Pydantic and Supabase both handle string literals natively.

This pattern (frozen + slots + Literal for unions) is industrial Python that is rarely covered in coursework. Most Fasilkom Python material treats dataclasses as a syntactic shortcut for __init__. The deeper use as a value-object boundary between transport and business logic is what shipped this week.

What Connects These Four

The unifying theme is integration with a third-party API done responsibly. The naive integration is import telegram; telegram.send(...). The disciplined integration is:

  1. Read the API docs deeply enough to know the failure modes (Bot API surface).
  2. Wrap retries on the right exceptions only, never on user errors (Tenacity).
  3. Schedule the periodic job with a proper scheduler, not a sleep loop (Celery Beat).
  4. Type the result so downstream code can route on it without parsing strings (structured failure classification).

Each of those is a distinct lesson the Fasilkom curriculum does not teach. Collectively they are the difference between “I sent a Telegram message in a hackathon” and “Telegram is a reliable notification channel for SIRA in production”.
